Understanding Polyphase Alternating Current in Connecticut Facilities
In residential applications, single-phase 120/240V utility power suffices for general lighting and small motors. In commercial plazas, supermarkets, and industrial manufacturing plants, single-phase power is hopelessly inefficient. 3-Phase Alternating Current (AC) delivers continuous, unpulsing torque to industrial motors, eliminates heavy starter capacitors, and reduces required copper conductor mass by 25% for identical power transmission.
3-Phase Industrial Motor FLA & Transformer Sizing Calculator
Select your facility's voltage architecture and motor horsepower (or transformer kVA) to instantly calculate Full Load Amperes (FLA), minimum 75°C copper feeder sizing, and color-coded phasing standards.
120V Line-to-Neutral • 208V Line-to-Line. Conforms to standard commercial utility delivery.
Master Electrician technical by Charles E. Federick Sr. (Lic #191788-E1)
1. The Three Predominant 3-Phase Systems in Connecticut
Selecting the correct electrical distribution configuration dictates equipment efficiency, conductor cost, and code compliance across Connecticut commercial and industrial facilities:

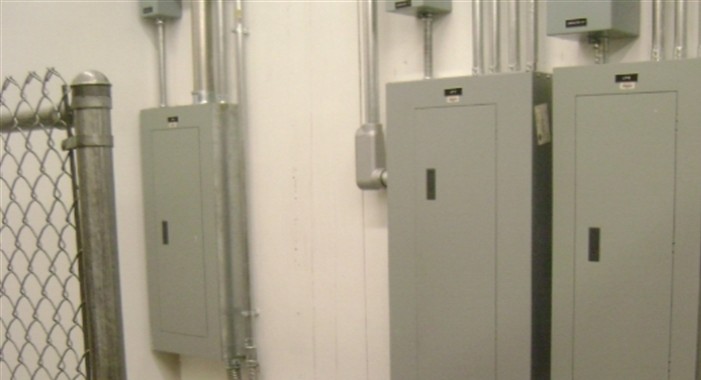

Commercial Retail & Food Service
Features a grounded center neutral. Measuring from any phase (A, B, or C) to neutral yields 120 Volts for lighting, point-of-sale, and general receptacles. Measuring line-to-line (A-B, B-C, C-A) yields 208 Volts for restaurant dishwashers, commercial pizza ovens, walk-in refrigeration compressors, and small motors.
Heavy Industrial & Manufacturing
The industrial powerhouse. Measuring line-to-neutral yields 277 Volts—used universally for commercial warehouse high-bay LED lighting and parking lot pole luminaires. Measuring line-to-line yields 480 Volts, driving heavy CNC milling centers, stamping presses, and chillers with minimal copper wire gauge.
Legacy Delta "Wild Leg" (NEC 110.15)
Derived from a 3-transformer delta bank with one transformer center-tapped. Phase A and C produce 120V to neutral, while line-to-line is 240V 3-phase. However, Phase B produces 208V to neutral! The high leg must be taped ORANGE. Connecting 120V equipment to Phase B causes instantaneous destruction.
2. Step-Down Dry Transformers (480V Delta to 120/208V Wye)
In modern Connecticut industrial facilities, primary utility power enters at 480V 3-phase. To feed 120V office computers, lighting, and convenience receptacles, Master Electrician Charles Federick installs floor-mounted or trapeze-hung dry-type step-down distribution transformers:
NEC 250.30 Separately Derived System Grounding
Because the secondary of a delta-to-wye transformer creates a brand-new neutral conductor ($X_0$), it is classified under the National Electrical Code as a Separately Derived System. The $X_0$ neutral terminal must be bonded to the nearest building structural steel (or electrode system) and cold water pipe with a full-size grounding electrode conductor (GEC). Failing to ground the $X_0$ creates floating voltage that destroys connected computers.
K-Factor Ratings for Non-Linear Harmonic Loads
Standard transformers overheat when supplying non-linear harmonic loads (variable frequency drives, computer server rooms, solid-state LED drivers). We specify K-4 or K-13 rated transformers built with double-size neutral conductors, electrostatic shielding, and special core laminations to safely dissipate harmonic eddy-current heat.
3. Frequently Asked Questions: 3-Phase Power Technical
Why does 480V industrial power use Brown-Orange-Yellow color coding? ↓
Can an existing commercial building upgrade from 208V to 480V? ↓
What is a phase monitor and why is it necessary for commercial chillers? ↓
